Description

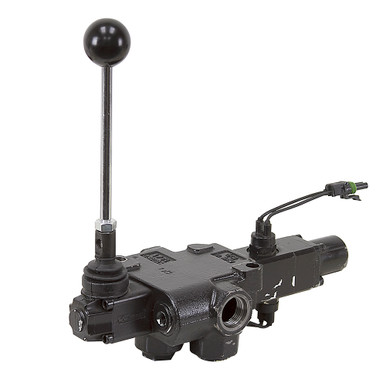

ONE-SPOOL WALVOIL MONOBLOCK DIRECTIONAL CONTROL VALVE
New, WALVOIL model 1EXP12144-U three-position, motor-spool, directional control valve. Monoblock construction. Standard lever box is threaded M10 x 1.5 to accept included handle. Switches at valve end opposite of lever box sense when spool is pushed forward (top switch) or in neutral (bottom switch). SPST switches are closed in these positions.
SPECIFICATIONS
- Brand Walvoil
- Model Number 1EXP12144-U
- Type Open-Center
- Spools One
- Flow 32 GPM max.
- Pressure 3600 PSI max.
- Relief Valve None
- Reqd. Filtration ISO 4406 19/16
- In/Out Ports SAE 12
- Work Ports SAE 12
- Mount Two hole
- Size 12.25″ x 4″ x 4.875″
- Shpg. 13 lbs.
Spool Details:
Spool 1 Motor spool, 3-position manual detent
