Description

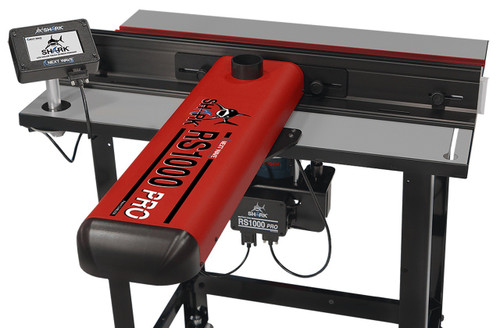

Transforms nearly any router table into a full-fledged 2 axis CNC, allowing you to adjust your router fence or bit height by as little as .001″. Comes with preloaded apps to do over a dozen common router and specialty joinery functions such as box joints, dovetail, dado, lock miter, and many more. Made in the USA.
Manufacturer’s 2-year warranty on parts and labor. US based Technical Support.
- Router fence and lift move accurately in direct relationship to the bit with movement as little as .001″.
- Full 12” router fence travel for larger projects and 3-1/2″ of router lift travel to accommodate spindles.
- Reduces setup time up to 90%.
- Toggles between standard, metric, and decimal measurements so you don’t have to convert dimensions.
- Programmable memory locations for commonly used settings.
- Works with any standard 3.5″ router motor.
Standard plate size: 9-1/4″ x 11-3/4″
Weight: 65 lbs.
Includes
Onboard processor with Color LCD pendant control
Removeable table inserts for larger bits
Integrated 2-1/4″ dust port
Works with almost any router table (not included)
Touch-off plate
Fence
Power supply adapter
Assembly required. 3.5″ router motor and router table, not included.
