Description
NXI00455-A2T0CSV-A1A200D2EA +FL21+DCD3+ADFIF101 +DLDE+GNUL+GNKC+GNUA+GNEA+LPC2+SPXE
Vacon NXI Inverter Unit
380 – 500 Vac (465-800 Vdc), 45 Amp, IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 2RO(NO/NC)
C Slot: No board
D Slot: SysBus(1fiber), CAN-MonBus
E Slot: Advanced 2-port ethernet
Manual: German
Frame 06
Other options according to Model code
Model code:NXI00455-A2T0CSV-A1A200D2EA+FL21+DCD3+ADFIF101+DLDE+GNUL+GNKC+GNUA+GNEA+LPC2+SPXE

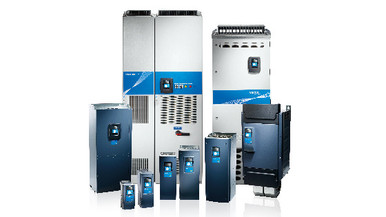

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
…
| Gross weight | 17 Kilogram | ||
| Net weight | 16 Kilogram | ||
| EAN | 5715253646589 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXI | NXI Inverter Unit | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0045 | 45 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 2 | IP21/NEMA1 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | C | INU w. integr. charg. circuit | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLC | Inch conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A2 | 2RO(NO/NC) | |
| Option Slot C | 00 | No board | |
| Option Slot D | D2 | SysBus(1fiber), CAN-MonBus | |
| Option Slot E | EA | Advanced 2-port ethernet | |
| Firmware language package | +FL21 | UK,FI,SE,DK,DE;Nordic | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLDE | German | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | +DCD3 | DC/DC converter; Uout,max>75% | |
| Application | +ADFIF101 | Appl sw ADFIF101 NXP, NXI | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC2 | Two sets of product labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GNUL | No UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GNKC | No Korean Approval | |
| Ukrainian Approval | +GNUA | No Ukrainian Approval | |
| EAC Approval | +GNEA | No EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR06 | Frame 06 | |
| Sub family identification | +SPXE | Sub-config for ExtDeliPartner | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DI-004552 | ||
| Typecode Part 2 | -000136173 | ||
| Salestext | FR0600455-2T | FR0600455-2T | |
| Modelcode01 | NXI00455-A2T0CSV- | ||
| Modelcode02 | A1A200D2EA | ||
| Modelcode03 | +FL21+DCD3 | ||
| Modelcode04 | +ADFIF101 | ||
| Modelcode05 | +DLDE+GNUL | ||
| Modelcode06 | +GNKC+GNUA+GNEA+LPC2+SPXE | ||
| Calculated Net Weight [kg] | 16 | ||
| Calculated Gross Weight [kg] | 17 | ||
| Motor Power Low Overload [kW] | 22 | 22 | |
| Motor Power High Overload [kW] | 18,5 | 18,5 | |
| Dimensions WxHxD [mm] | 195X557X237 | 195X557X237 | |
| Continuous Current (NO) [A] | 46 | 46 | |
| Continuous Current (HO) [A] | 38 | 38 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DI-004552 | 7DI-004552 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A200D2EA | ||
| STAT NO | 17976 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 | |
| Salescode part 3 | +FL21+DCD3 | +FL21+DCD3 |
