Description
NXP00315-A2T1SSV-ANB2BHB1E2
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 31 Amp, IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: 6DI,2AI,2AO,10/-10Vref,24V
B Slot: 1RO(NO/NC),1RO(NO),therm
C Slot: 3 temp meas channels
D Slot: 6 programmableDI/DO
E Slot: RS485 (Modbus/N2)
Manual: English
Frame 05
Other options according to Model code
Model code:NXP00315-A2T1SSV-ANB2BHB1E2

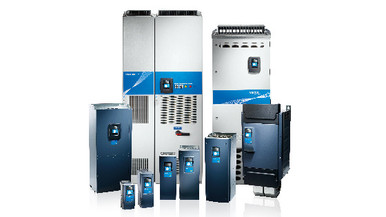

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
…
| Gross weight | 9.1 Kilogram | ||
| Net weight | 8.1 Kilogram | ||
| EAN | 5715253234953 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0031 | 31 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 2 | IP21/NEMA1 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 1 | Integrated Brake chopper | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLC | Inch conduit plate | |
| Option Slot A | AN | 6DI,2AI,2AO,10/-10Vref,24V | |
| Option Slot B | B2 | 1RO(NO/NC),1RO(NO),therm | |
| Option Slot C | BH | 3 temp meas channels | |
| Option Slot D | B1 | 6 programmableDI/DO | |
| Option Slot E | E2 | RS485 (Modbus/N2) | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DQCK | Quick guide user manual | |
| Documentation Lang. Preference | +DLUK | English | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR05 | Frame 05 | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-003152 | ||
| Typecode Part 2 | -000092110 | ||
| Salestext | FR0500315-2T | FR0500315-2T | |
| Modelcode01 | NXP00315-A2T1SSV- | ||
| Modelcode02 | ANB2BHB1E2 | ||
| Calculated Net Weight [kg] | 8.1 | ||
| Calculated Gross Weight [kg] | 9.1 | ||
| Motor Power Low Overload [kW] | 15 | 15 | |
| Motor Power High Overload [kW] | 11 | 11 | |
| Dimensions WxHxD [mm] | 144X417X214 | 144X417X214 | |
| Continuous Current (NO) [A] | 31 | 31 | |
| Continuous Current (HO) [A] | 23 | 23 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DP-003152 | 7DP-003152 | |
| check if complete | OK | OK | |
| Salescode part 2 | ANB2BHB1E2 | ||
| STAT NO | 03736 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Plant from Orderline | D801 | D801 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a |
