Description
NXP00615-ATC1STV-A1A3000000+QGLM +FL21 +DPAP+DLDE
Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 61 Amp, IP Mounting bracket
Alpha-numeric display
EMC C-class
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 1RO(NO/NC),1RO(NC), therm
C Slot: No board
D Slot: No board
E Slot: No board
Manual: German
Frame 06
Other options according to Model code
Model code:NXP00615-ATC1STV-A1A3000000+QGLM+FL21+DPAP+DLDE

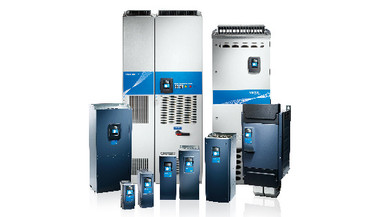

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
…
| Gross weight | 19.5 Kilogram | ||
| Net weight | 18.5 Kilogram | ||
| EAN | 5715253713533 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | T | Mounting bracket | |
| Mains voltage | 5- | 380 – 500 Vac (465-800 Vdc) | |
| Current | 0061 | 61 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | T | IP Mounting bracket | |
| EMC emission levels | C | EMC C-class | |
| Brake Chopper | 1 | Integrated Brake chopper | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLM | Metric conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A3 | 1RO(NO/NC),1RO(NC), therm | |
| Option Slot C | 00 | No board | |
| Option Slot D | 00 | No board | |
| Option Slot E | 00 | No board | |
| Firmware language package | +FL21 | UK,FI,SE,DK,DE;Nordic | |
| Documentation Level | +DPAP | Paper manuals | |
| Documentation Lang. Preference | +DLDE | German | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR06 | Frame 06 | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-00615T | ||
| Typecode Part 2 | -000143753 | ||
| Salestext | FR0600615-TC | FR0600615-TC | |
| Modelcode01 | NXP00615-ATC1STV- | ||
| Modelcode02 | A1A3000000+QGLM | ||
| Modelcode03 | +FL21 | ||
| Modelcode05 | +DPAP+DLDE | ||
| Calculated Net Weight [kg] | 18.5 | ||
| Calculated Gross Weight [kg] | 19.5 | ||
| Motor Power Low Overload [kW] | 30 | 30 | |
| Motor Power High Overload [kW] | 22 | 22 | |
| Dimensions WxHxD [mm] | 195X561X237 | 195X561X237 | |
| Continuous Current (NO) [A] | 61 | 61 | |
| Continuous Current (HO) [A] | 46 | 46 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stock Code | 7DP-00615T | 7DP-00615T | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A3000000+QGLM | ||
| STAT NO | 03739 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Plant from Orderline | D801 | D801 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Salescode part 3 | +FL21 | +FL21 |
