Description
NXP00882-A2T0SSV-A1A3000000
Vacon NXP Frequency Converter
230 Vac, 88 Amp, IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
No Brake
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: 1RO(NO/NC),1RO(NC), therm
C Slot: No board
D Slot: No board
E Slot: No board
Manual: English
Frame 07
Other options according to Model code
Model code:NXP00882-A2T0SSV-A1A3000000

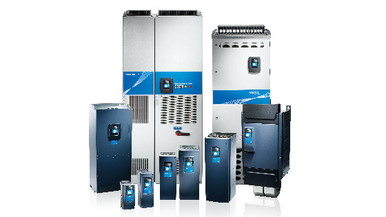

The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
…
| Gross weight | 36 Kilogram | ||
| Net weight | 35 Kilogram | ||
| EAN | 5710108927288 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | NXP | NXP Frequency Converter | |
| Customized Drive | +BM26 | Vacon Dark Grey NXP | |
| Mechanical Modification | S | Standard air cooled drive | |
| Mains voltage | 2- | 230 Vac | |
| Current | 0088 | 88 Amp | |
| Control Keypad | A | Alpha-numeric display | |
| Enclosure | 2 | IP21/NEMA1 | |
| EMC emission levels | T | IEC61800-3 for IT networks | |
| Brake Chopper | 0 | No Brake | |
| Electrical Modification | S | 6-pulse with choke | |
| Card Modifications | V- | DirectConn. w Varnished Boards | |
| Shipping Package | +GSCB | Cardboard box as Shipping pack | |
| Warranty | +WT01 | Warranty 12/18 months | |
| Gland Plate Option | +QGLC | Inch conduit plate | |
| Option Slot A | A1 | 6DI,DO,2AI,1AO,+10Vr,+24V | |
| Option Slot B | A3 | 1RO(NO/NC),1RO(NC), therm | |
| Option Slot C | 00 | No board | |
| Option Slot D | 00 | No board | |
| Option Slot E | 00 | No board | |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur | |
| Documentation Level | +DQCK | Quick guide user manual | |
| Documentation Lang. Preference | +DLUK | English | |
| System Firmware | +FNP02 | System software NXP | |
| Software license | NONE | no software license | |
| Application | +A000 | No Special Application | |
| Parameter Set | NONE | none | |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ | |
| Labeling options | +LPC1 | no additional labels | |
| Special BoM structure | +SPC0 | Standard BoM Configuration | |
| CE Approval | +GACE | CE Approval | |
| UL Approval | +GAUL | UL approval | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| Marine approval | NONE | no marine approval | |
| KC Approval | +GAKC | Korean Approval | |
| Ukrainian Approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Region | -R00 | International (-R00) | |
| Frame Size | FR07 | Frame 07 | |
| Power rating | 22K | 22 kW/30 HP | |
| Sub family identification | NONE | Normal customer ordered | |
| Customer specific power variat | NONE | Normal power rating | |
| Typecode Part 1 | 7DP-008822 | ||
| Typecode Part 2 | -000004155 | ||
| Salestext | FR0700882-2T | FR0700882-2T | |
| Modelcode01 | NXP00882-A2T0SSV- | ||
| Modelcode02 | A1A3000000 | ||
| Calculated Net Weight [kg] | 35 | ||
| Calculated Gross Weight [kg] | 36 | ||
| Motor Power Low Overload [kW] | 22 | 22 | |
| Motor Power High Overload [kW] | 22 | 22 | |
| Dimensions WxHxD [mm] | 237X591X257 | 237X591X257 | |
| Continuous Current (NO) [A] | 88 | 88 | |
| Continuous Current (HO) [A] | 75 | 75 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Prefix VXSNXLM | 7 | 7 | |
| Platform VXSNXLM | D | D | |
| Stockcode part 1 | 7DP-008822-117LUK | ||
| Stock Code | 7DP-008822 | 7DP-008822 | |
| check if complete | OK | OK | |
| Salescode part 2 | A1A3000000 | ||
| STAT NO | 03721 | ||
| Calculated Net Weight | 35 | ||
| Calculated Package Weight | 1 | ||
| Help Counter | 1 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Recommended Plant | ERR01 | ERR01 |
