Description

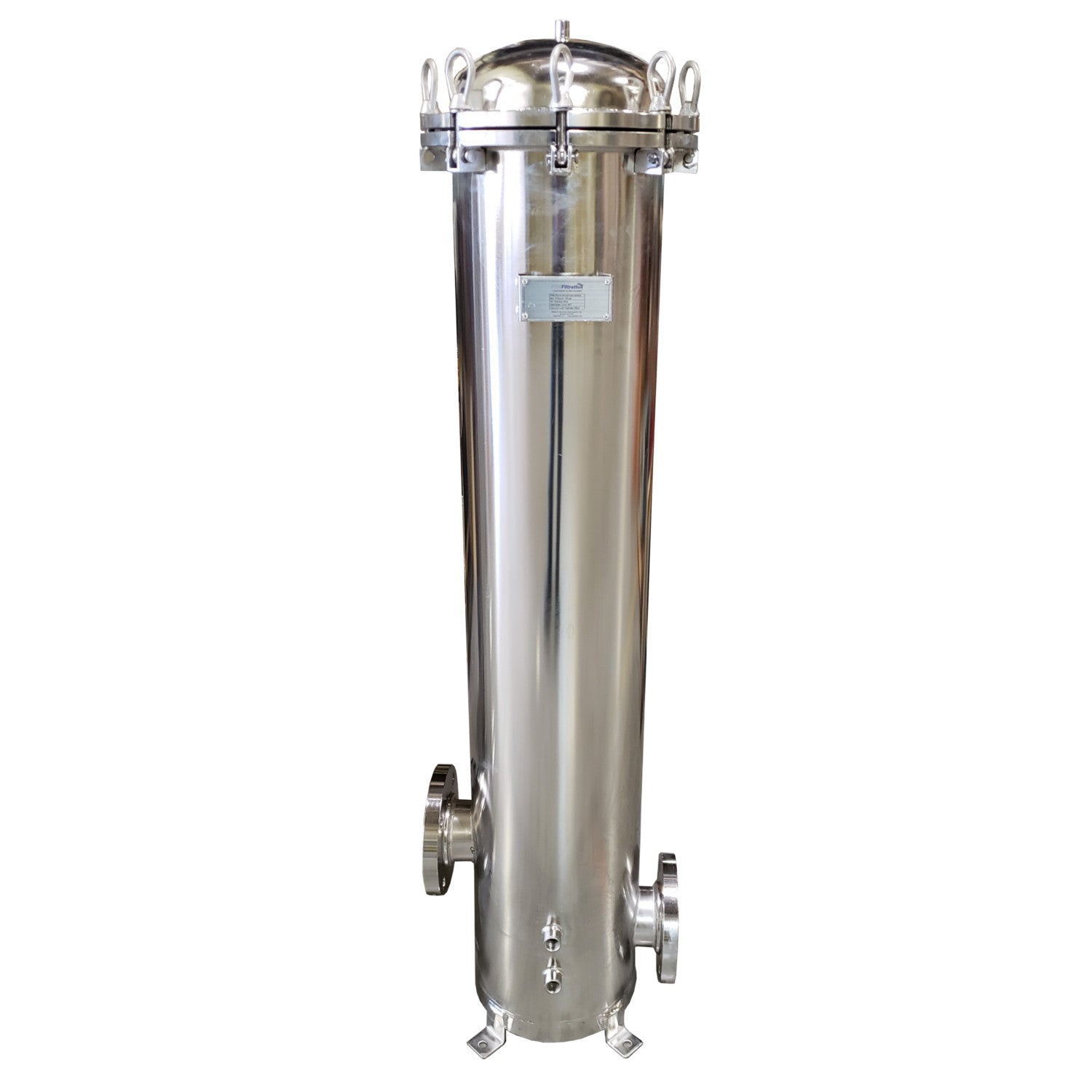

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 3 INCH FLANGE INLET/OUTLET
PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x 40 Inch cartridge filters.
Features:
- 304 SS construction for corrosion resistance
- Uses (7) 40 Inch Cartridge Filters
- Flow Capacity 168 gpm
- 3 Inch 150 Flange Inlet/Outlet
- EPDM O-Ring
- 1/2” NPT drains
- Top vent port for pressure gauge or relief valve
- Max. Operating pressure: 145 psig
- Operating temperature: 40°-140°F
BFCARTSSC28304X Datasheet
BFCARTSSC28304X Drawing
