Description
FLOW CONTROL VALVE

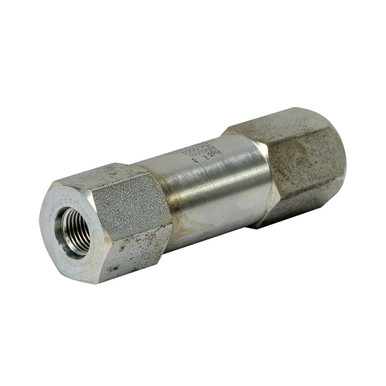

New, Parker PPCCK620S9.5 pressure compensated in-line flow control valve with reverse check. Designed to regulate flow at a selected rate, within 5%, regardless of fluctuations in inlet and outlet pressure. Factory-set for a specified flow and are not adjustable by the user.
SPECIFICATIONS
- Brand Parker
- Part Number PPCCK620S9.5
- Series PC
- Max. Operating Pressure 3000 PSI
- Min. Pressure to Compensate 100 PSI
- Temperature Range -40°F to +250°F (-40°C to +121°C)
- Max. Flow 9.5 GPM
- Min. Flow 0.3 GPM
- Reverse Flow Max. thru Check 5 GPM
- Ports SAE 6 (9/16″-18 ORB) Female
- Body Material Steel
- Mounting In-line
- Size 3-7/8″ x 1-1/8″ x 1-1/8″
- Shpg 0.9 lbs.
