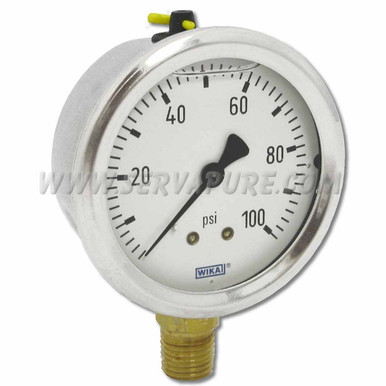

Description
Special Features
– Wika Brand
– Vibration and shock resistant
– Liquid (glycerin) filled
– Stainless Steel Case
Accuracy Class
– 2.5% of Spam (ASME B40.100 Grade A)
Working Pressure
– Steady: 3/4 Full Scale Value
– Fluctuating: 2/3 Full Scale Value
– Short Time: Full Scale Value
Operating Temperature
– Ambient: -4°F to +140°F (-20°C to +60°C) (glycerine filled)
– Medium: +140°F (+60°C) maximum
Weather Protection
– Weather tight (NEMA 4X / IP 65)
Pressure Connection
– Material: Copper Alloy
– Size: 1/4″ M/NPT
– Location: Lower Mount
Movement
– Material: Copper Alloy
Dial
– White ABS with stop pin and black lettering
Pointer
– Black Aluminum
Wika LM Pressure Gauge Spec Sheet
