Description

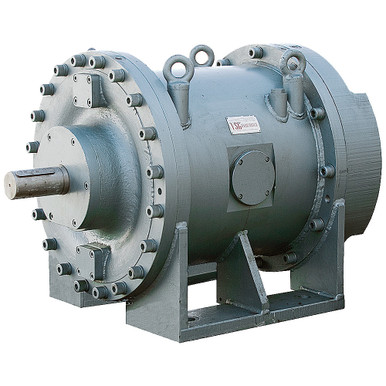

VSG HYDRAULICS PISTON PUMP
Unused, old inventory. VSG HYDRAULICS piston pump. Model MK4, size 24, type FC. Base mount on 16″ x 20-3/4″ centers with 1.55″ diameter mounting holes.
SPECIFICATIONS
- Brand VSG Hydraulics
- Model Number MK4
- Small Ports
4-bolt flange on 2-3/16″ x 2-3/8″ centers for 1/2″-20 NF bolts 1″ deep
1-1/4″ dia. port hole
2 ports on the front, 1 port on the rear - Large Ports
4-bolt flange on 3-3/4″ x 5-1/2″ centers for 1″-12 NF bolts 2″ deep
3″ dia. port hole
2 ports on the front, 1 port on the rear - Mount 4 bolt base mount
- Shaft 3″ dia. x 5-1/2″ long with 3/4″ x 4-1/2″ long keyway
- Size 35″ x 28″ x 29.5″
- Shpg. 2900 lbs.
