Description

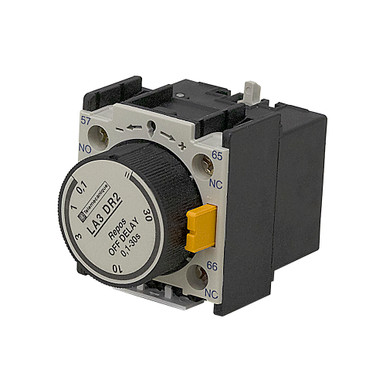

TIME DELAY BLOCK
New, TELEMECANIQUE model LA3DR2 time delay block. When actuated the relay gives a timed delayed OFF signal to contact sets. Requires relay to actuate the pneumatic timing mechanism. Relay not included. One Normally Open contact set and one Normally Closed contact set.
SPECIFICATIONS
- Brand TELEMECANIQUE
- Model Number LA3DR2
- Delay OFF Range 0.1 to 30 seconds
- Voltage 480 Volt AC
- Contact Ratings 10 Amps
- Rated Insulation Voltage 660 Volts AC
- Rated Operational Voltage 500 Volts AC
- Mounting Plug-in
- Size 2-5/8″ x 1-3/4″ x 2″
- Shpg 0.3 lbs.
