Description
VACON0100-3L-0061-4-X+A1181
VACON® 100X
61 AMP, (-4) 380 – 480 Vac
(+DBIN) Brake Chopper, (+LS50) 50 Hz
C2 Commercial&Industry Environ
Modbus, Backnet, N2 (+FBM2),No Keypad
D Slot: No board
E Slot: No board
Other options according to Model code
Model code:VACON0100-3L-0061-4-X+A1181

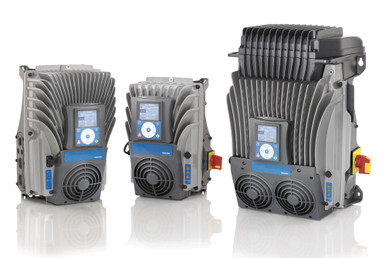

VACON® 100 X
Achieve maximum performance in extreme environments. This AC drivewithstands high-pressure…
| Gross weight | 32.5 Kilogram | ||
| Net weight | 31.5 Kilogram | ||
| EAN | 5710108836160 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | VACON | VACON | |
| Product Series | 0100 | VACON 100 | |
| Input type | -3L | -3L | |
| Current | -0061 | 61 | |
| Current Description | 61 AMP | 61 AMP | |
| Mains Voltage | -4 | (-4) 380 – 480 Vac | |
| Segment | -X | Vacon 100X | |
| Regional | -R00 | International | |
| Customized | +BM1X | Vacon0100product | |
| Terminal Box | +TBOX | (+TBOX) Basic Terminal Box | |
| Brake | +DBIN | (+DBIN) Brake Chopper | |
| Frequency setting | +LS50 | (+LS50) 50 Hz | |
| Display Units | +LSSI | Metric Units of Measure | |
| Documentation level | +DQCK | (+DQCK) Quick Guide | |
| Firmware Language Pack | +FL01 | UK, DE, FI, SE, IT, FR lang | |
| SW Package | +F0072 | (+F0072) GP System Software | |
| EMC level | +EMC2 | C2 Commercial&Industry Environ | |
| Marine Approval | +E000 | (+E000) No Marine Approval | |
| Application | +A1181 | (+A1181) Solar Application | |
| Internal FB selection | +FBM2 | Modbus, Backnet, N2 (+FBM2) | |
| Keypad | +HMNO | No Keypad | |
| Real Time Clock Battery | +SRNO | No Battery for real time clock | |
| D Slot Option Board | +SD00 | No board | |
| E Slot Option Board | +SE00 | No board | |
| Additional Equipment A | +Q000 | (+Q000) No add. Equipment A | |
| Additional Equipment B | +Q000 | (+Q000) No add. Equipment B | |
| Additional Equipment C | +Q000 | No add. Equipment C | |
| Shipping Package | +GSCB | Standard Packaging Material | |
| UL Approval | +GAUL | (+GAUL) UL Approval | |
| CE Aproval | +GACE | (+GACE) CE Approval | |
| C-tick Approval | +GACT | (+GACT) C-Tick Approval | |
| KC Approval | +GAKC | (+GAKC) KC Approval | |
| Frame Size | MM6 | MM 06 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | VACON0100-3L-0061-4-X | ||
| Modelcode04 | +A1181 | ||
| Typecode Part 1 | VA100X-3L-0061-4-X+BM1X | ||
| Typecode Part 2 | -000000941 | ||
| Calculated Net Weight [kg] | 31.5 | ||
| Calculated Gross Weight [kg] | 33.85 | ||
| Calculated Package Weight | 2.35 | ||
| Dimensions WxHxD [mm] | 350X500X236 | 350X500X236 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Recommended Plant | ERR01 | ERR01 | |
| ECCN US | 3A999.a | 3A999.a | |
| ECCN EU | Y901 | Y901 | |
| Help Counter | 1 |
