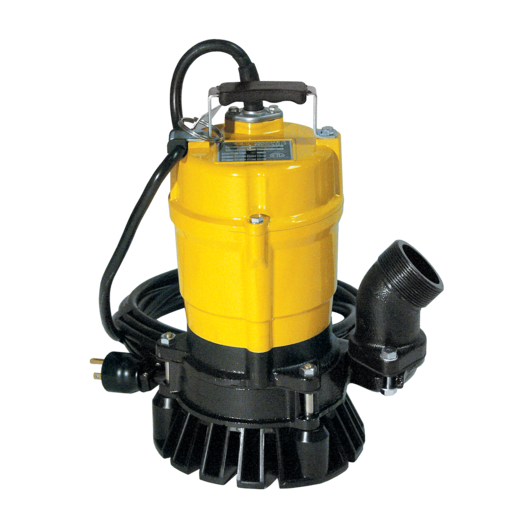

Wacker Neuson 5000009112 – PST2 400 Single Phase Submersible Pump (110V, 5.4A, 1/2HP, 20’ CORD)
The Wacker Neuson PST2 400 is a Single-Phase Submersible Pump with a 1/2 HP motor, 110V power, and a 20’ cord, built for efficient and reliable dewatering. It handles dirty water with small solids, delivering strong performance in a compact and lightweight design that’s easy to transport and install. With built-in thermal protection and durable components, it offers dependable operation with minimal maintenance. Shop now.
Features
- Lightweight, compact design
- Built-in thermal protection prevents motor damage
- Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity
- Heavy-duty strain relief power cord
Comes with
- Submersible Pump
- Electrical supply cable
- Operator’s manual
Technical Specifications
MOTOR
|
Imperial
|
Metric
|
| Nominal current |
5,4 A |
5,4 A |
| Nominal voltage |
110 V |
110 V |
| Nominal speed |
3.350 1/min |
3.350 1/min |
| Nominal frequency |
60 Hz |
60 Hz |
| Nominal power |
0,400 kW |
0,400 kW |
MECHANICAL – OUTPUT DETAILS
|
Imperial
|
Metric
|
| Flow rate max. |
52,8 gal/mi |
200 l/min |
| Solid diameter max. |
0,3 “ |
7,0 mm |
| Delivery height max. |
39,4 Foot |
12,0 m |
SHIPPING AND STORAGE
|
Imperial
|
Metric
|
| Width for shipping |
10,0 “ |
255 mm |
| Shipping weight |
29,1 lb |
13,20 kg |
| Length for shipping |
16,1 “ |
410 mm |
| Height for shipping |
8,5 “ |
217 mm |
ELECTRICAL SYSTEM
|
Imperial
|
Metric
|
| Cable definition |
PVC Sheath |
PVC Sheath |
| Length Cable |
19,7 Foot |
6,00 m |
| Cable cross-section |
0,0 Inch2 |
1,3 mm2 |
ENVIRONMENT DATA
|
Imperial
|
Metric
|
| Temp. limit borrowed liquid |
104,0 °F |
40 °C |
| Degree of protection |
68 |
68 |
MECHANICAL DETAILS
|
Imperial
|
Metric
|
| Operating weight |
24,9 lb |
11,3 kg |
| Length |
9,8 “ |
250 mm |
| Intake-/Pressure socket-dia. |
2,0 “ |
50 mm |
| Height |
12,9 “ |
328 mm |
| Width |
7,3 “ |
185 mm |
